You asked for it, Dynamic Delivers!

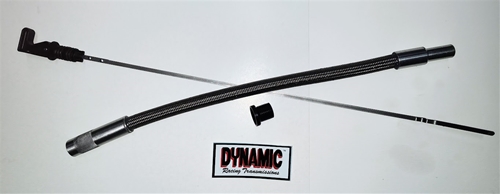

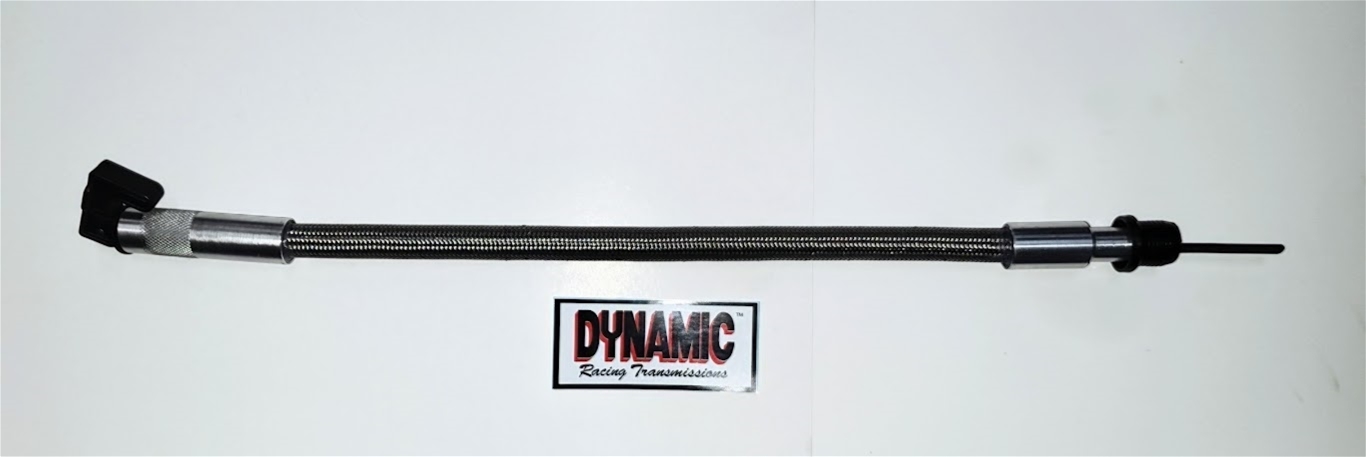

Finally, a flexible case fill dipstick that doesn't require a funnel adapter to fill the transmission.
Dynamic Racing Transmissions has always been the innovator when it comes to the C4.
And this dipstick assembly is no exception.
Designed with a 1/2" id bore using PTFE lined braided stainless steel hose and 6061 aluminum adapters, this kit replaces the factory steel dipstick assembly perfectly giving you the flexibility to bend around obstacles in a non stock application.
It features a locking handle on a STEEL dipstick for easy reading of fluid level.
Other features include a boot type bottom seal at the case for leak free service AND an accurate location of the Full Mark for correct fluid level.
Installation is simple,just remove your old dipstick assembly and place the rubber boot into the opening in the case.
Lubricate the end of the aluminum tube and press into the rubber boot until it stops.
To locate the handle end, we have provided a rubber lined mounting clamp which has a 3/8" hole to fit on a bellhousing bolt.
Or you can opt to mount it securely to the firewall with a self tapping screw.
Assembled completely in-house at Dynamic Racing Transmissions
